M12 X-Code Connectors: Powering High-Speed Data Transfer

Neue Produkte 2025-06-20 10:30:00

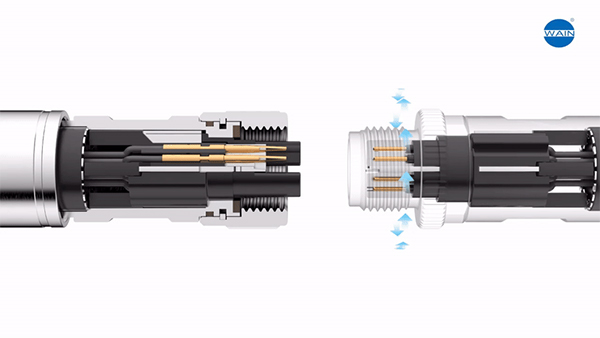

In various industrial applications, the demand for miniaturization, compact design, and secure, reliable data transmission continues to grow. The M12 X-code connector stands out with its remarkable quick-installation advantages. Its internal X-coding shield design effectively isolates the four signal pairs, delivering exceptional signal performance and ensuring outstanding signal integrity. This design meets the requirements of CAT5E and CAT6A standards, making it an ideal choice for advanced data transmission needs.

WAIN M12 X-Code Series Connectors are designed for seamless signal transmission and come in a wide range of product models making them an ideal choice for 1GB to 10GB Ethernet applications. Fully compliant with the IEC 61076-2-109 standard, they ensure compatibility across all industry-standard connectors. This series features anti-vibration, corrosion resistance, and shielding against interference, along with an IP67 protection rating, delivering reliable performance in demanding environments.



Technical Specifications



Number of Contacts: 8

Rated Current (at 40°C): 0.5A

Rated Voltage: 50V AC / 60V DC

Rated Impulse Voltage: 0.8kV

Pollution Degree: 3

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥10MΩ

Locking Mechanism: M12×1 Threaded

Wire Gauge: 0.14mm² (AWG 26)

Protection Class: IP67

Mating Cycles: ≥100

Temperature Range: -40°C to +85°C

Contact Material: Copper Alloy

Contact Plating Material: Gold  (Au)

Insulation Material: Polyamide  (PA)

Housing Material: Zinc Alloy  with Nickel Plating





New Product Recommendations





1



Socket

Features:

1.High Data Transmission Speeds: Supports speeds up to 10Gbps.

2.All-Metal Housing: Effectively resists electromagnetic interference.

3.Enhanced Locking  Mechanism: The X-code connector with flange can be securely fastened to installation panels, offering easy disassembly, high strength, and excellent sealing performance.

★Conversion Connectors: The M12-F08X/F08X-BKR-M17 models serve as conversion connectors, enabling M12 X-code connector conversions.



2

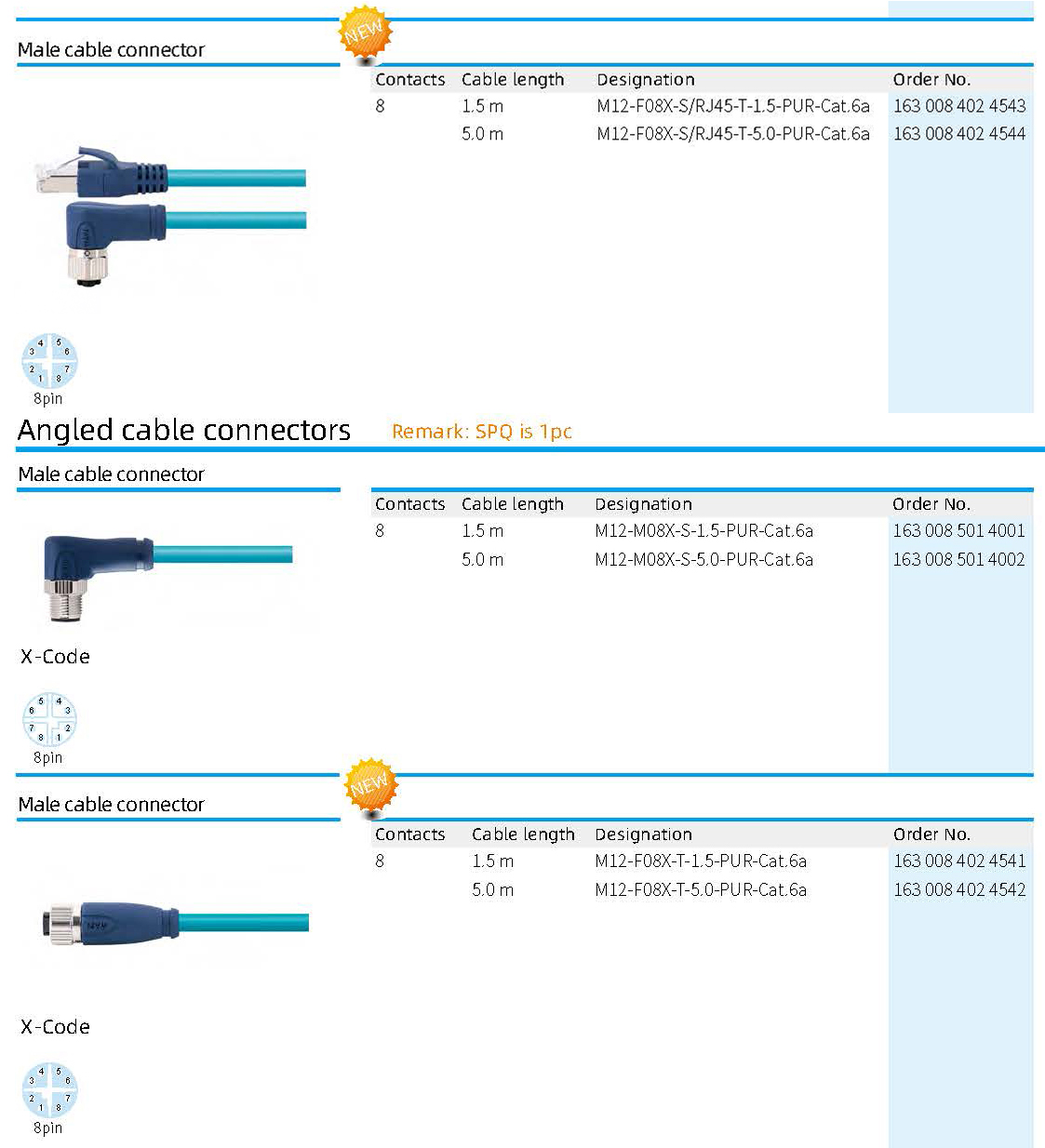

Cable Connectors with Wires

Features:

Versatile Cable Lengths and Types: WAIN offers cables in various lengths with terminations including male, female, and RJ45 interfaces. Straight and angled configurations are available for male and female connectors to suit  diverse installation needs.

Material Options:

PVC (Polyvinyl Chloride):       Economical and ideal for general automation equipment and sensors.

PUR (Polyurethane): Resistant to oil, acids, and alkalis, as well as bending and flexing, making it suitable for harsh environmental conditions.

Advanced Testing Capabilities: WAIN's dedicated laboratory can perform a range of customized tests, including air-tightness testing, salt spray testing, and cable bending tests, ensuring the product meets the highest quality standards.

In addition to the new product recommendations above, you can find more information about the M12 X-Code series on the WAIN official website.





Applications

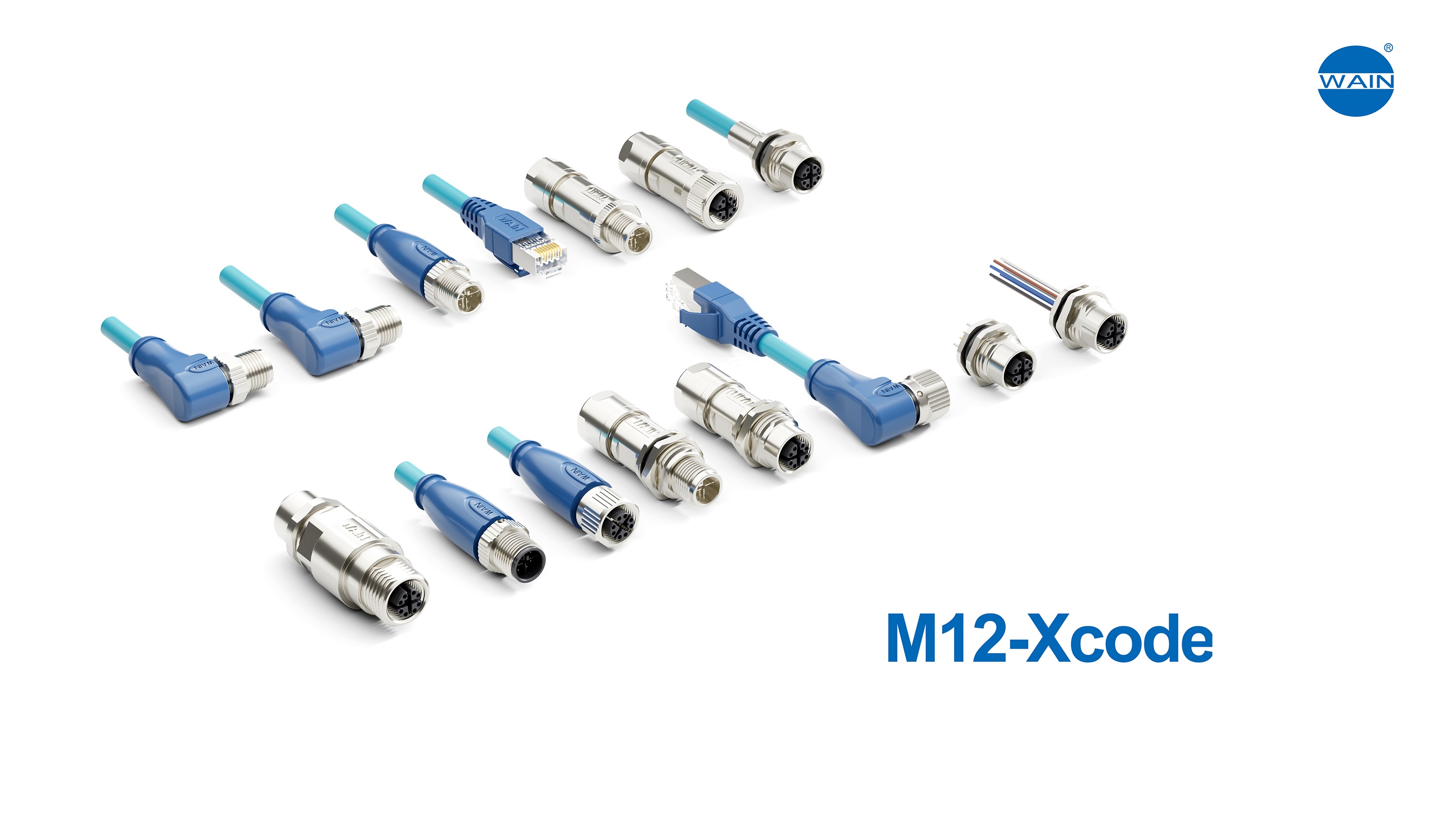

The WAIN M12 X-Code Series Connectors are perfect for industrial applications, including:

  • PLC Systems

  • Servo Drives

  • Industrial Ethernet Switches

  • Industrial Access Points

  • Industrial Machinery

  • Robotics Technology





END

WAIN is not only manufacturing, but also creating!

Any questions and ideas related to industrial connectors,

we welcome to discuss with you.
